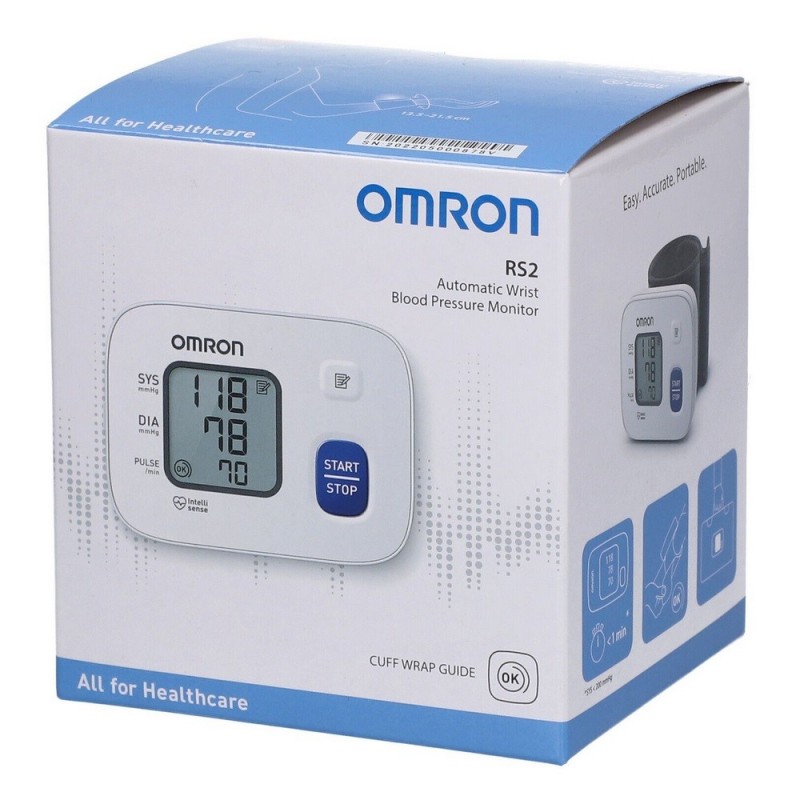

OMRON RS2 WRIST BLOOD PRESSURE MONITOR

Descriptions
Omron RS2 Wrist Blood Pressure Monitor electronic automatic (automatic inflation) is designed to control blood pressure, by taking at wrist level. An electronic box with a built-in dial (tensiomontre) is fixed to the wristband of the monitor (monobloc). It is a new technology monitor (intellisense), which operates very quietly and measures more quickly (during inflation).

General characteristics
This device measures:
- systolic pressure (pressure in the arteries at the moment of cardiac contraction or maximum pressure).
- diastolic pressure (pressure in the arteries between 2 contractions or minimum pressure).
- pulse rate.
These 3 values are displayed simultaneously on the screen.

Operating principle
oscillometric method.

Technical characteristics
- Intellisense technology: automatic determination of the pressure required to inflate the cuff for blood pressure measurement.
- digital (or numeric) liquid crystal display.
- measurement scale: pressure 0 to 299mm Hg (mercury), pulse 40 to 180 beats/minute.
- ‘OK’ symbol confirming correct cuff inflation.
- hypertension indicator.
- cuff inflation: automatic thanks to built-in electric micro-pump.
- automatic deflation at the end of blood pressure measurement.
- memory: last 30 measurements with date and time.
- irregular pulse detector with indication on display.
- audible signal indicating end of blood pressure measurement.
- power supply: 2 x 1.5V AAA LR03 batteries (included), life approx. 300 measurements at 23°C
- weight: 101g (excluding batteries).
- dimensions: 78mm X 60mm X 21mm (of dial).

General presentation
Watch with Velcro-adjustable wristband (cuff), suitable for wrist sizes ranging from 13.5cm to 21.5cm, to which is attached an electronic unit comprising:
- a digital display dial.
- a Start and Stop button (to start the measurement).
- a Memory button for storing the measurement.

Packaging
unit, transparent rigid plastic storage box for transport, user manual, warranty card, self-measurement logbook, 2 batteries. 3-year warranty.
